Horticulture Mapping Robot

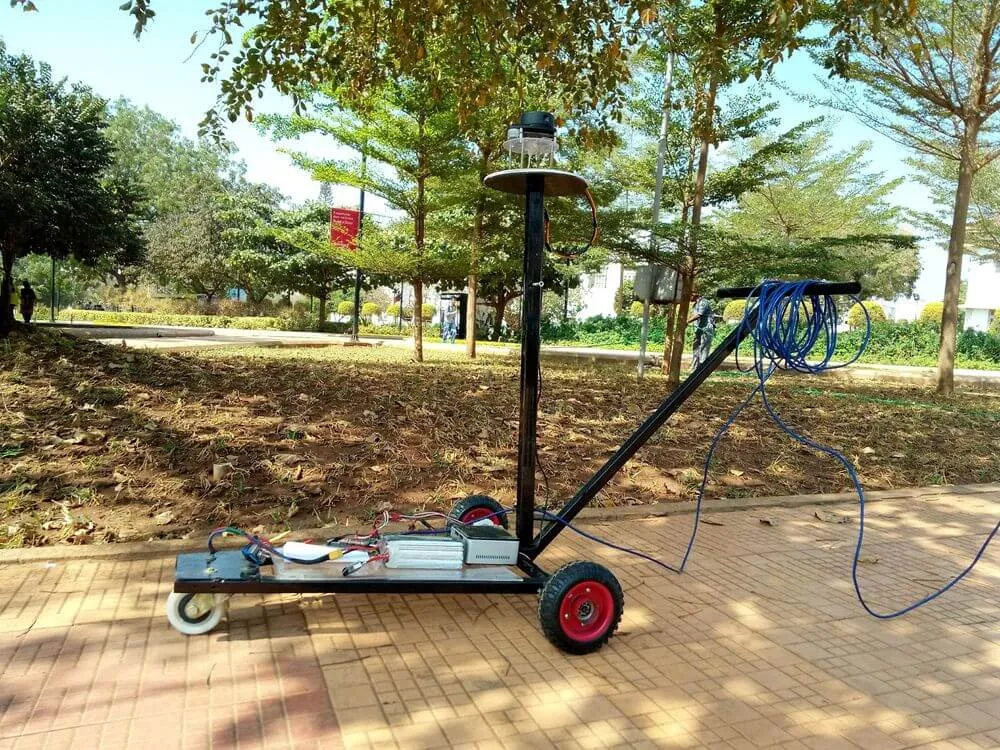

Handheld robot to measure foliage and/or count trees in horticulture fields using a 2D LiDAR, IMU, and odometry (wheel or visual odometry for use untethered from the ground). It can be mounted on any agricultural machinery or on a hand-cart, as shown below.

As shown in the application interface below, RViz is used for displaying the LiDAR scan data, mapping data, and detected tree trunks in the bottom-left corner.

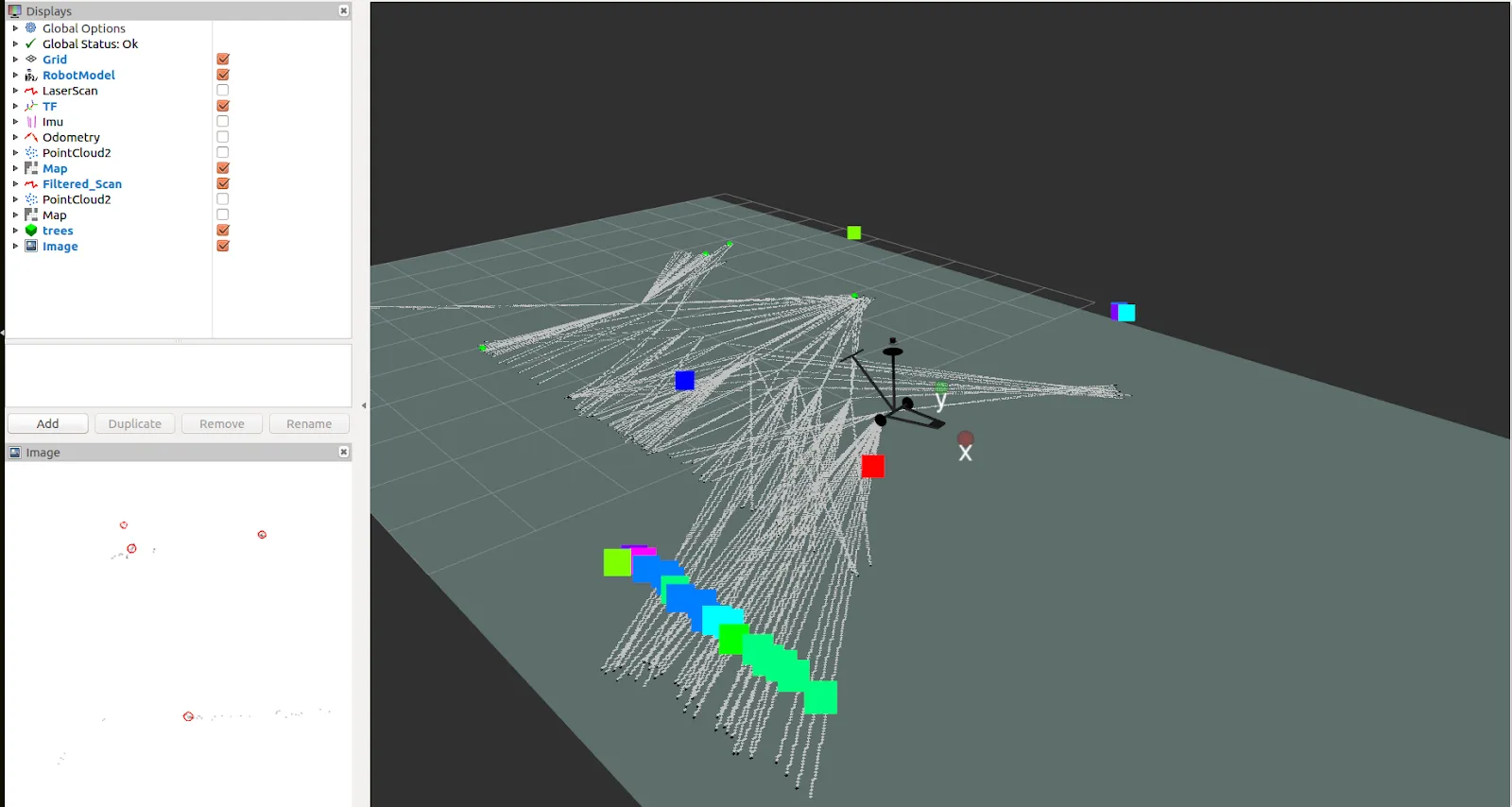

RViz display showing 2D LiDAR scan and tree trunk detections Main window: 2D LiDAR scan; bottom-left window: tree trunks

OpenCV is used to detect tree trunks via SimpleBlobDetector, which extracts blobs by circularity and area.

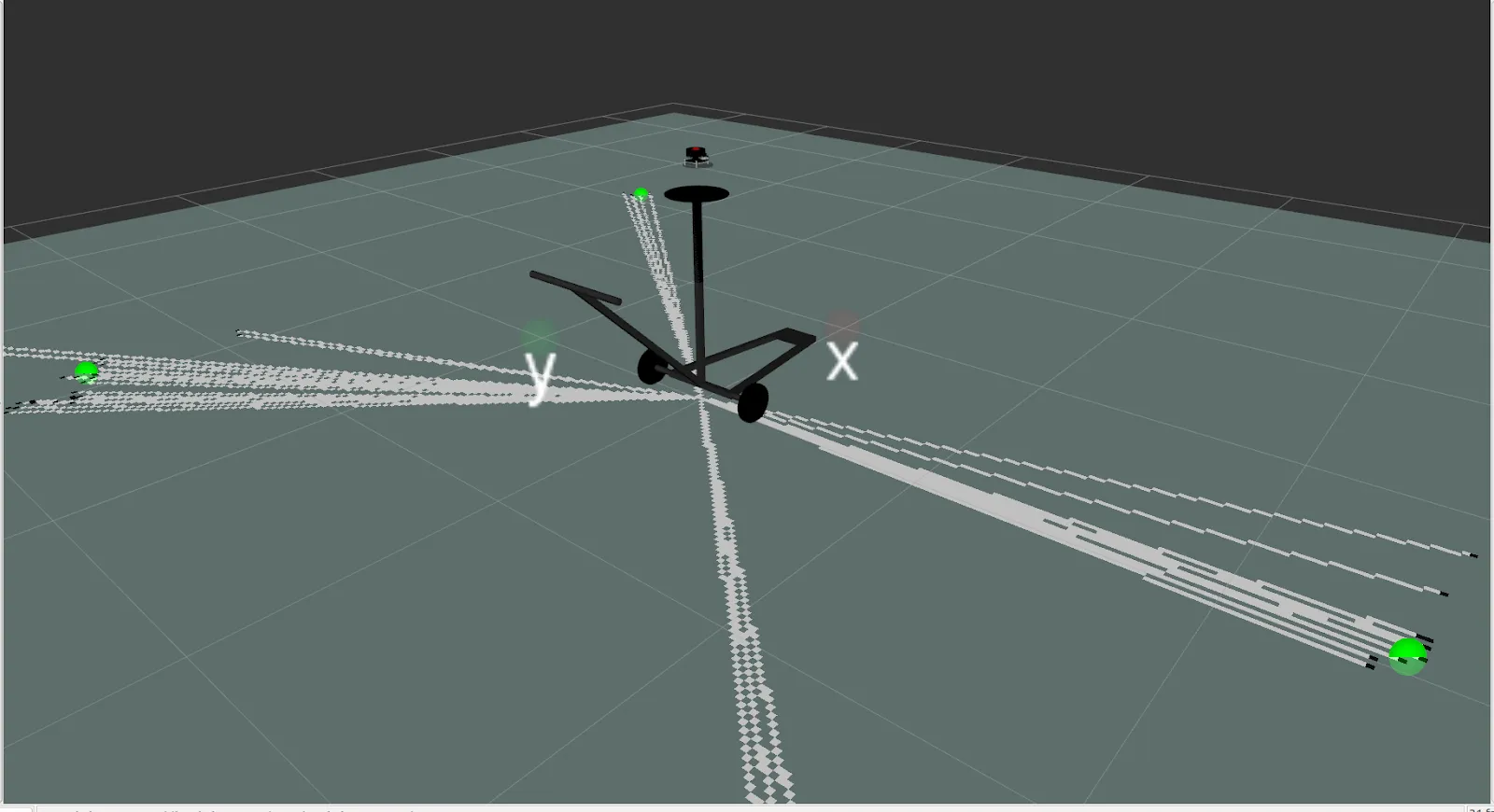

Detected tree trunks shown as green spheres

Software architecture diagram Software architecture

Graphed tree trunk positions verified against professional laser measurements Graphed tree trunk positions, verified with a professional laser measuring tool
